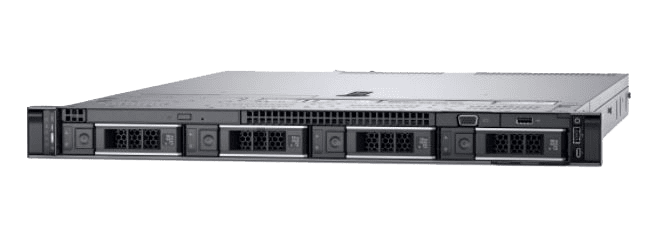

Dell PowerEdge R440 Rack Server
Designed for dense, scale-out computing


Gain performance and density in a compact 1U, 2-socket rack server for HPC, web tech and scale-out infrastructure.
Performance in a density-optimized 1U, 2-socket rack server
Experience an outstanding balance of performance and density for scale-out computing. The PowerEdge R440 brings you value in a small form factor. Benefit from platform flexibility and maximize performance with dual 2nd Generation Intel® Xeon® Scalable processors, up to 16 DIMMs and scalable storage that lets you mix SSDs and NVMe PCIe SSDs. Embedded diagnostics and SupportAssist help the R440 to deliver maximum uptime in a worry-free environment.
Ideal workloads:
- HPC
- Web tech
- Scale-out infrastructure
Deliver performance at scale with the PowerEdge portfolio
Modern compute platforms from Dell EMC are designed to scale easily and use technologies that maximize application performance. The PowerEdge R440 rack server provides choice and flexibility that lets you optimize performance and density.
- Scale compute resources with 2nd Generation Intel® Xeon® Scalable processors and tailor performance based on your unique workload requirements.
- Gain storage flexibility with up to 10 x 2.5″ SAS/SATA/SSD with up to 4 NVMe PCIe SSDs, or 4 x 3.5″ disks.
- Free up storage with boot-optimized M.2 SSDs.
Gain productivity with intelligent, embedded management
Dell EMC OpenManage intelligent automation enables you to spend less time on routine maintenance so you can focus on business-critical priorities.
- Help maximize uptime and reduce the IT effort to resolve issues by up to 72%* with ProSupport Plus and SupportAssist.
- Leverage existing management consoles with easy integrations for VMware® vSphere®, Microsoft® System Center and Nagios®.
- Improve productivity with agent-free Dell EMC iDRAC9 for automated management.
- Simplify deployment with OpenManage next-generation console and server profiles to configure and prep servers rapidly and scalably.
Fortify your data center with comprehensive protection
A comprehensive, cyber-resilient architecture with security embedded into every server helps to protect your data.
- Protect server configuration and firmware from malicious changes with new Configuration Lock-down.
- Use system erase of local storage to help ensure data privacy when you repurpose or retire servers.
- Automate updates that check file dependencies and proper update sequence, before deploying them independently from the OS/hypervisor.
- Take control of your firmware consoles with embedded authentication that is designed to allow only properly signed updates to run.
Processor
Up to two 2nd Generation Intel® Xeon® Scalable processors with up to 24 cores per processor
Operating System
- Canonical® Ubuntu® Server LTS
- Citrix® Hypervisor ®
- Microsoft® Windows Server® with Hyper-V
- Red Hat® Enterprise Linux
- SUSE® Linux Enterprise Server
- VMware® ESXi®

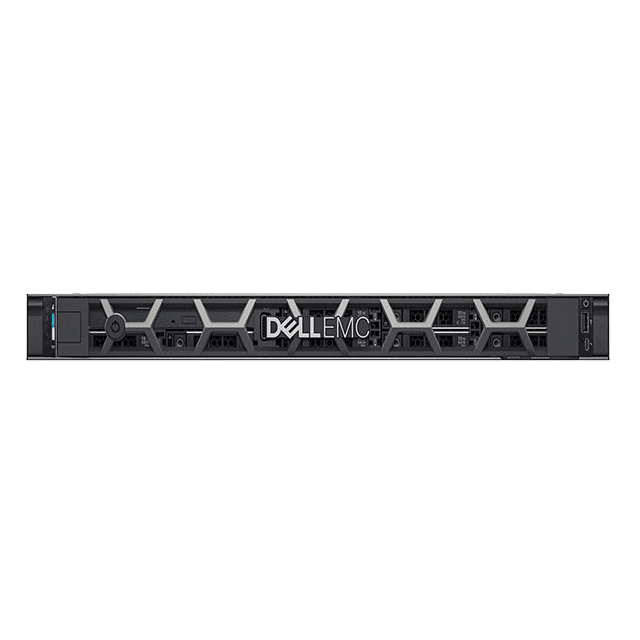

Bezel
Optional LCD bezel or security bezel
Dimensions & Weight
Height : 42.8mm (1.68″)
Width : 434mm (17.08″)
Depth : 714.6mm (28.13″)
Weight : 17.6kg (38.9lbs.)
Memory
DIMM Speed
Up to 2666 MT/s
Memory Type
- RDIMM
- LRDIMM
Memory Module Slots
- 16 DDR4 DIMM slots
- Supports registered ECC DDR4 DIMMs only
Maximum RAM
- RDIMM 512GB
- LRDIMM 1TB*
Power Supplies
- Bronze 450W (Cabled PSU)
- Platinum 550W(Hot plug PSU with full redundancy option)
- Up to six fans
Recommended Support
Choose Dell ProSupport Plus for critical systems or Dell ProSupport for premium hardware and software support for your PowerEdge solution. Consulting and deployment offerings are also available. Contact your Dell representative today for more information. Availability and terms of Dell Services vary by region.
Regulatory
- Product Safety, EMC and Environmental DatasheetsÂ
- Dell Regulatory Compliance Home PageÂ
- Dell and the Environment
Security
- Cryptographically signed firmware
- Secure Boot
- Secure Erase
- Silicon Root of Trust
- System Lockdown (requires OpenManage Enterprise)
- TPM 1.2/2.0, TCM 2.0 optional
Storage Controllers
Internal Controllers
PERC H330, H730P, H740P, HBA330
External Controllers
H840, 12Gbps SAS HBA
Software RAID
S140
Internal Boot
Boot Optimized Storage Subsystem (BOSS):
HWRAID 2 x M.2 SSDs 240GB or 480GB
Internal Dual SD Module
Rack Support
ReadyRails™ sliding rails with optional cable management arm for 4-post racks (optional adapter brackets required for threaded hole racks).
Form Factor
1U Rack Server
Slots
PCIe
2 x Gen3 slots all (x16)
Ports
Front Ports
- 1 x Dedicated iDRAC direct USB
- 1 x USB 2.0
- 1 x USB 3.0 (optional)
- 1 x Video
Rear Ports
- 1 x Dedicated iDRAC network port
- 1 x Serial
- 2 x USB 3.0
- 1 x Video
Storage
Front Bays
- Up to 10 x 2.5” SAS/SATA (HDD/SSD) with up to 4 NVMe
- SSD max 76.8TB
- Up to 4 x 3.5” SAS/SATA HDD, max 64TB
- DVD-ROM, DVD+RW
Management
Embedded / At-the-Server
- iDRAC9
- iDRAC RESTful API with Redfish
- iDRAC Direct
- Quick Sync 2 BLE/wireless module
Consoles
- OpenManage Enterprise
- OpenManage Power Center
Mobility
OpenManage Mobile
Tools
- Dell EMC RACADM CLI
- Dell EMC Repository Manager
- Dell EMC System Update
- Dell EMC Server Update Utility
- Dell EMC Update Catalogs
- OpenManage Server Administrator
- OpenManage Storage Services
- iDRAC Service Module
- IPMI Tool
OpenManage Integrations
- BMC TruesightÂ
- Microsoft® System Center
- RedHat® Ansible® Modules
- VMware® vCenter
OpenManage Connections
- IBM Tivoli® Netcool/OMNIbus
- IBM Tivoli® Network Manager IP Edition
- Micro Focus® Operations Manager I
- Nagios® Core
- Nagios® XI
